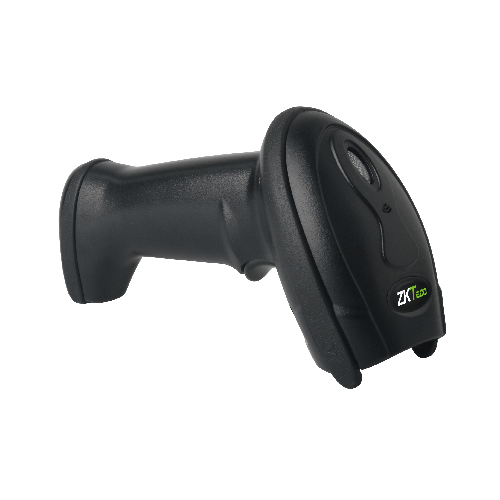

ZKT Barcode Scanner 101 1D
ZKB101 is a general-purpose gun-type handheld barcode scanner with high-speed decoding speed, humanized design, stable performance, and error rate of less than 1/5 million bit.The exquisite appearance is suitable for any hand. The ergonomic design of
Parameters
-
General
-
Weight < 160g (without wire)
-
Dimensions(L*W*H) 175mm × 72mm × 100mm
-
Wire Length 1.8m
-
Interface Type Standard USB (Full Speed, USB 2.0)
-
Material ABS + PC
-
Color Black
-
User Indicators LED, buzzer
-
Scanning Performance
-
Light Source Visible laser diode, wavelength: 525nm
-
Processor ARM 8-bit
-
Startup Time 4s
-
Analytical Ability ≥ 3mil / 0.076mm@PCS90%
-
Depth of Focus 0 - 50cm
-
Scanning Mode Manual scanning, Constant light scanning
-
Reading Angle Roll: ±30°; Pitch: ±60° (or greater); Yaw: ±50° (or greater)
-
Input Power 85mA @ 5V DC
-
Light Levels 5000Lux
-
Scanning Speed 250 times per second
-
Environmental
-
Operating Temperature -10°C to 50°C
-
Storage Temperature -30°C to 70°C
