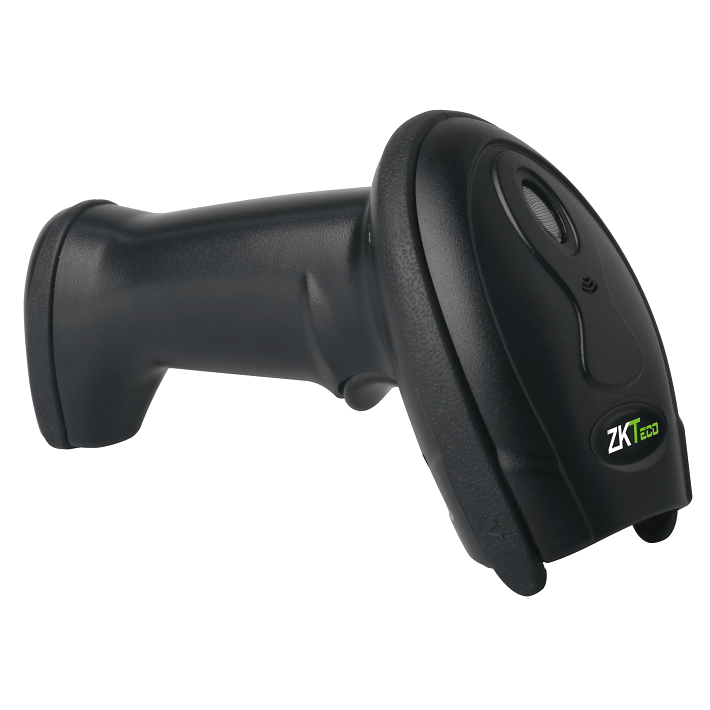

ZKT Barcode Scanner201 2D
ZKT Barcode Scanner 2D
Parameters
-
General
-
Weight : 160g (without wire)
-
Dimensions : 175mm × 72mm × 100mm
-
Wire Length : 1.8m
-
Wireless Performance : Standard USB (Full Speed , USB 2.0)
-
Material : ABS + PC
-
Color : Black
-
User Indicators : LED, buzzer
-
Scanning Performance
-
Light Source : Lighting: white LED; Focusing: Green LED; Wavelength: 525nm
-
Image Sensor : 640 × 480 CMOS
-
Processor : ARM32-bit
-
Startup Time : 4s
-
Analytical Ability : 1D: ≥ 5mil; 2D: ≥ 8.7mil @PCS90%
-
Depth of Focus : 5mil: 50 ~ 130mm;13mil: 50 ~ 270mm
-
Scanning Mode : Manual scanning, automatic scanning
-
Reading Angle : Roll: ±360°; Pitch: ±60° (or greater); Yaw: ±70° (or greater)
-
Field of View : Horizontal 40°, Vertical 30°
-
Motion Tolerance : 2.3m/s
-
Input Power : 160mA @ 5V DC
-
Light Levels : 70000Lux
-
Decode Capabilities: 1D: Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5,
Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN / JAN-8, EAN / JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded
2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec
-
Environmental
-
Operating Temperature : -20°C to 55°C
-
Storage Temperature: -20°C to 60°C
-
Relative Humidity : 5% to 95% (non-condensing)
-
Protection Level: IP54
-
High and Low Temperature Test : Work properly for 30 minutes under simulation of temperature of -20°C and 60°C
-
Transport Vibration Test : 10H@125RPM
-
Drop Test : 1.8m, 100times
