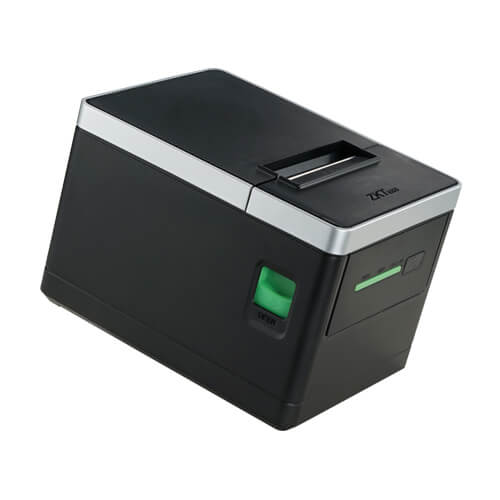

ZKT Thermal printer 8008
Model ZKP8008
Parameters
-
Model Name ZKP8008
-
Printing
-
Print Method Direct Thermal Line Printing
-
Print Speed 260mm/sec
-
Print Command Compatible with ESC / POS
-
TPH 100 km
-
Interface USB + LAN
-
Character
-
Font A 12 * 24dots, 1.5(W) * 3.0(H)mm
-
Font B 9 * 17dots, 1.1(W) * 2.1(H)mm
-
Chinese 24 * 24dots, 3.0(W) * 3.0(H)mm
-
Alphanumeric ASCII 12 × 24dots
-
1D
-
UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODABAR / ITF / CODE39 / CODE93 /
CODE128
-
Power Supply
-
Output DC 24V / 2.5A
-
Cash Drawer DC 24V / 1A
-
Paper
-
Paper Type Thermal Receipt Paper
-
Paper Width 79.5±0.5mm ( Print Width 72mm )
-
Paper Thickness 0.060 ~ 0.08mm
-
Roll Diameter 83mm
-
Paper Cutter Auto Cutter: Full or Partial Cut
-
Physical Environment
-
Temperature 5 - 45℃
-
Weight 2kg
-
Dimension 192 * 145 * 133mm (L*W*H)
